JAW CRUSHER
As a trusted Jaw Crusher Manufacturer in India, Pralcka designs and manufactures robust crushers engineered for maximum performance in the toughest mining and construction environments. Our jaw crushers reduce large-sized rocks, ore, or other materials through powerful compression, producing output that can be efficiently transported by belt conveyors to the next stage of crushing.
FEATURES
01.
Toggle technology
Imported Swedish Single Toggle technology
02.
Hydraulic jack
Very easy CSS adjustment set by hydraulic jack
03.
Capacity
Less Consumption of grease and high production capacity
04.
Rigid Body
Very rigidly Constructed body
Technical Specification
| Model | Feed Opening mm (inch) | Feed size (mm) | Capacity (TPH) | CSS Range (mm) | Crusher Speed (rpm) | Power(kw) |
| PRJC 1412 |
1400X1200 ( 56 X 50 ) |
1200 | 600-1000 | 200-300 | 220 | 220 |
| PRJC 1210 |
1250X1050 ( 50 X 42 ) |
1000 | 400-600 | 125-250 | 240 | 160 |
| PRJC 1108 |
1150 X 800 ( 45 X 32 ) |
750 | 200-350 | 100-200 | 270 | 110 |
| PRJC 907 |
900 X 700 ( 37 X 28 ) |
650 | 150-200 | 75-150 | 270 | 75 |
| PRJC 805 |
830 X 580 ( 33 X 23 ) |
500 | 100-160 | 75-125 | 300 | 55 |

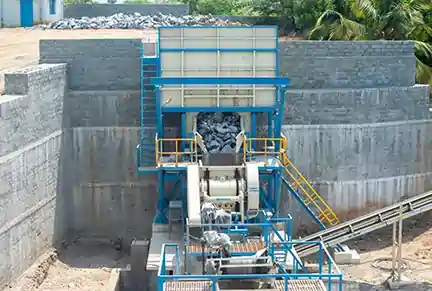

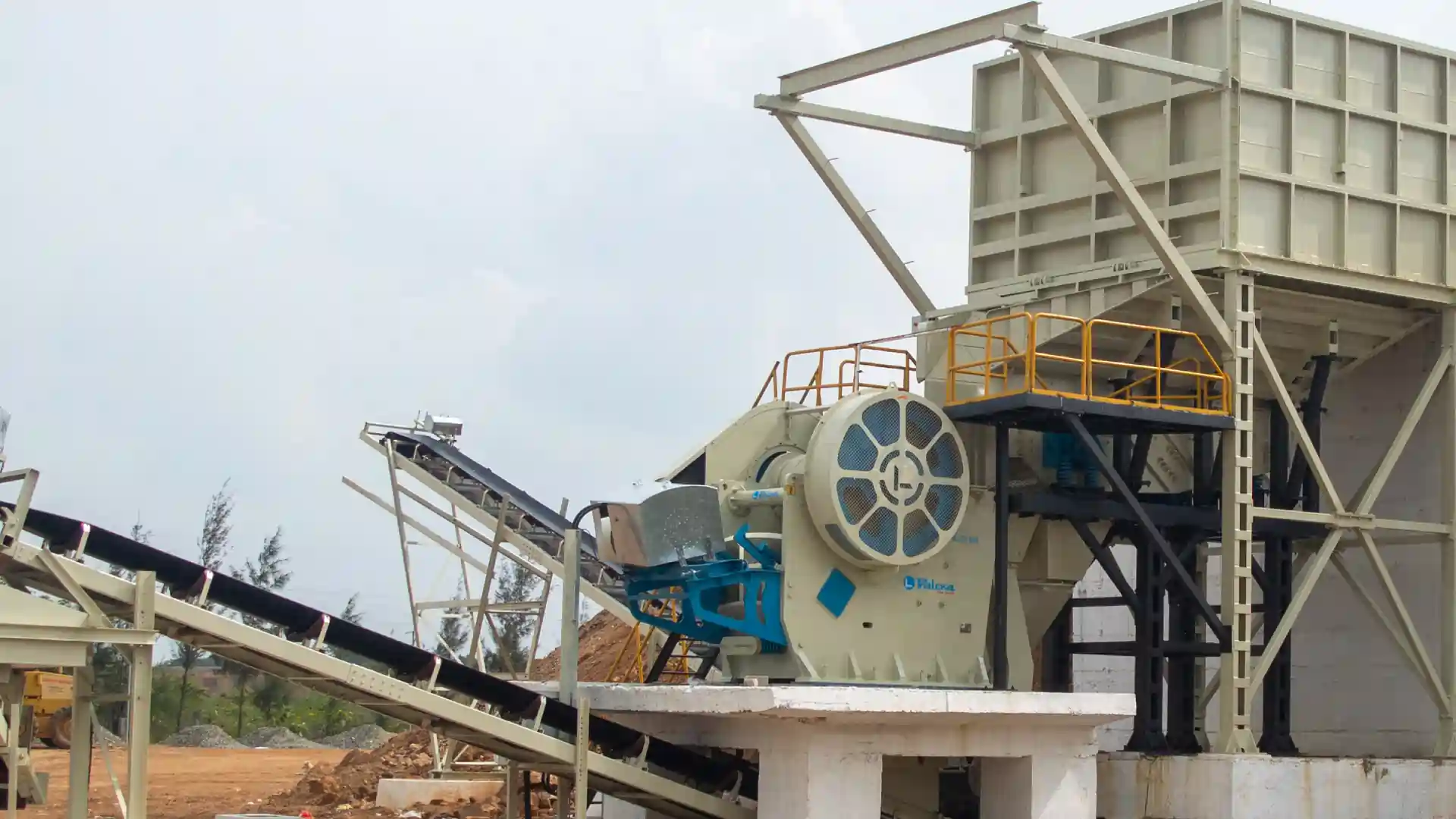

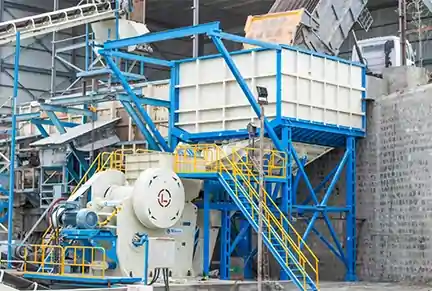

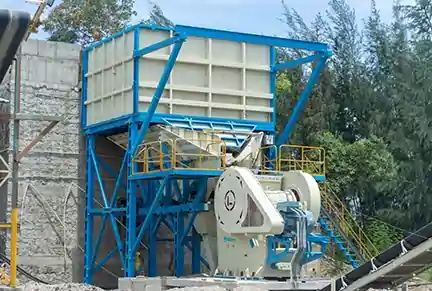

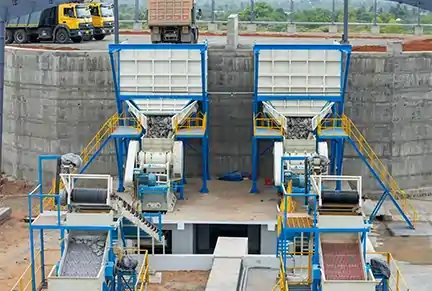

Installed Plant view
Pralcka Jaw Crusher
To know more about the machine’s in-detail
Click & Download handbook
